E.11 Advanced Constraints

Spring 구속조건을 검증하기 위해 그림과 같이 캔틸레버 끝 단에 스프링을 요소로서, 구속조건으로서 연결하고 그 해를 비교하였다.

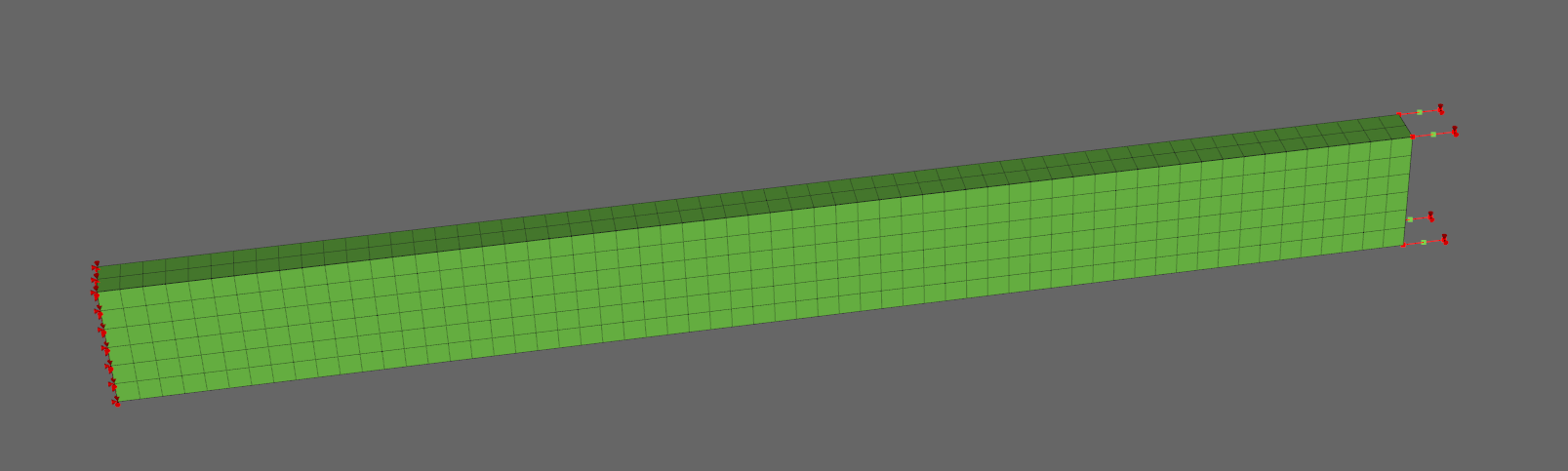

Figure E.11.1 Analysis Model

Table E.11.1 Static Analysis Results : End

Without spring	With spring
	By Spring Element	By Spring Constraint	By EarthSpring Constraint
198.33	39.9117	39.9117	39.9117

Table E.11.2 Comparisons of natural frequencies

Without spring	With spring
	By Spring Element	By Spring Cosntraint	By EarthSpring Constraint
0.0951002 0.269454 0.59355 1.57558 1.62146 1.65197 3.21012 4.17111 4.28854 4.74205	0.35565 0.56388 0.84119 1.70113 1.70698 1.74593 3.25484 4.17111 4.31754 4.78775	0.35565 0.56388 0.84119 1.70113 1.70698 1.74593 3.25484 4.17111 4.31754 4.78775	0.35565 0.56388 0.84119 1.70113 1.70698 1.74593 3.25484 4.17111 4.31754 4.78775

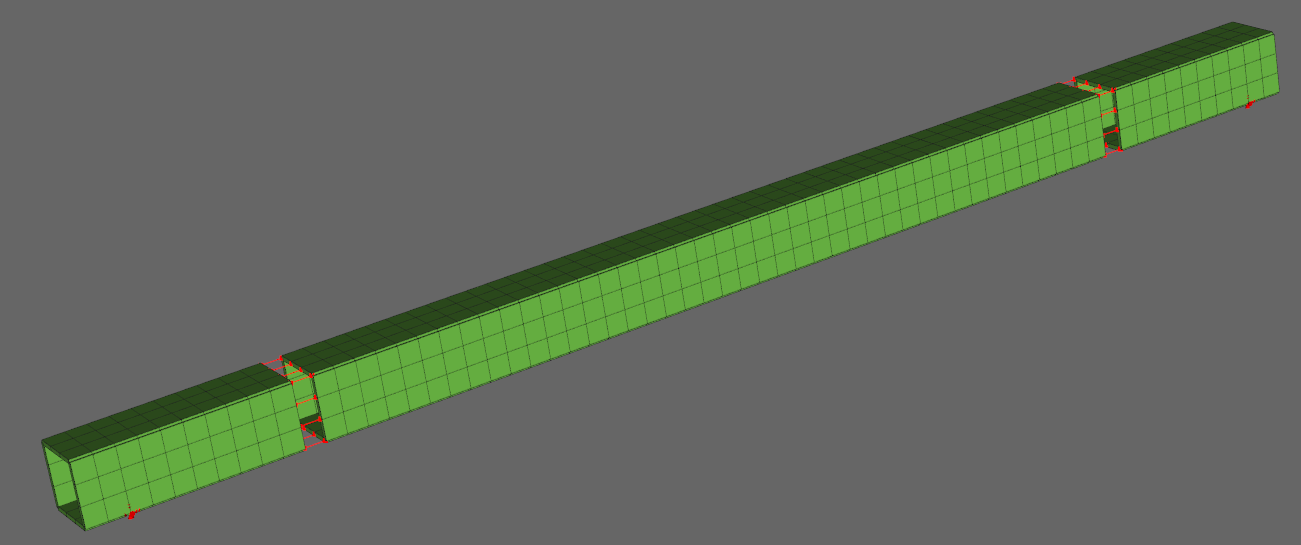

Figure E.11.2 Connect nodes using Rigid Link or Spring

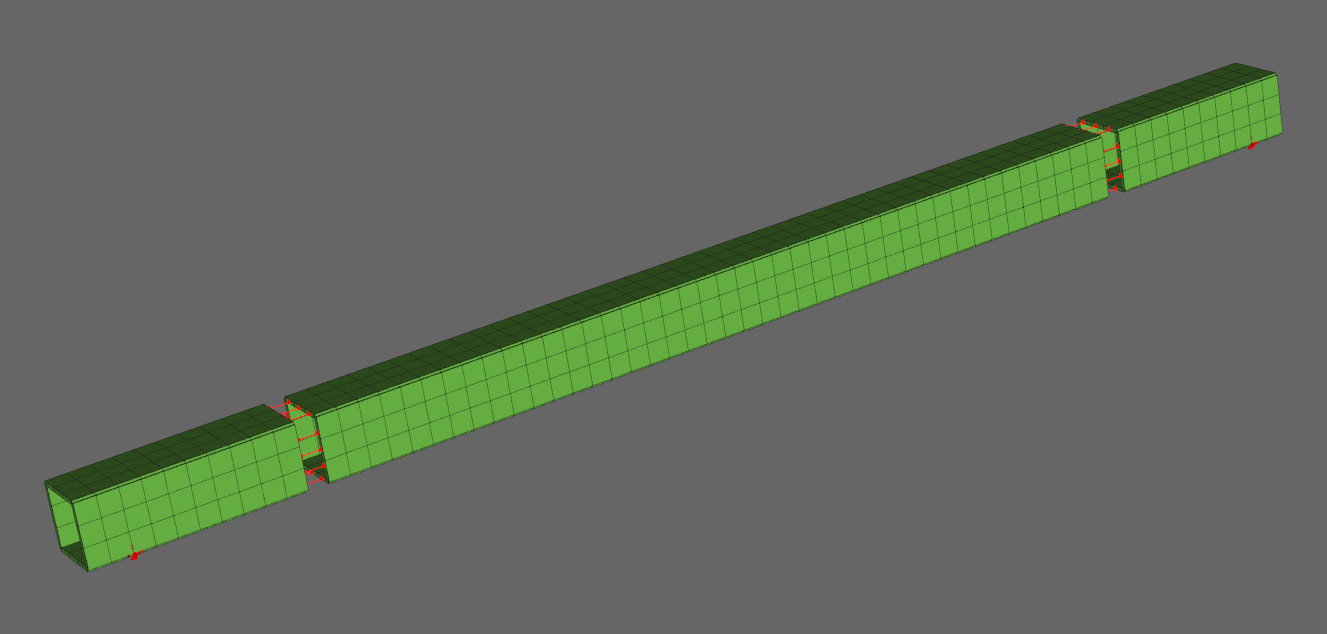

Figure E.11.3 Connect nodes formed by Embedded Constraint using Rigid Link or Spring

Table E.11.3 Static Analysis Results

Without Segments	Three-Segments
	RigidLink	Spring	Embedded+RigidLink	Embedded+Spring
3.37928e-05	3.05851e-05	3.05852e-05	3.05851e-05	3.05852e-05

Table E.11.4 Frequency Analysis Results (Natural Frequencies in Order)

Without Segments	Three-Segments
	RigidLink	Spring	Embedded+RigidLink	Embedded+Spring
40.8517 54.0611 153.508 156.798	43.6544 57.3514 160.169 163.263	43.6544 57.3513 160.169 163.262	43.6544 57.3484 160.079 163.263	43.6543 57.3481 160.078 163.262
